Chinsunboard – a Calcium Silicate Board with high impact strength and moisture and fire resistant properties



Chinsun calcium silicate board is the good choice for building board applications such as wall partitioningwall cladding and decorative walling. Chinsun calcium silicate board  can be applied to residential, commercial and industrial buildings, schools and hospitals etc, especially is suitable for where speedy construction, cleanliness and hygiene is of high importance. It's lghter than fiber cement board but also strong and flexible.



Benefits of Chinsun Calcium Silicate Board:

- Weather resistant

- Immune to water damage
- Fire resistant
- Provides sound insulation
- Shatter resistant
- Low shrinkage
- Flexible
- High degree of workability
- Termite resistant

Matching the Demands of Modern Applications

Chinsun calcium silicate board is a non-asbestos composed of Portland cement, cellulose fibre,tobermorite and quartz sand.

Using a special manufacturing process called autoclave, ChinsunBoard acquires the strength, durability of cement and easy workability of wood as well as dimensional stability.


A non-combustible multi-purpose application calcium silicate board, ChinsunBoard comes with various thicknesses which are suitable for various applications; ceiling, wall, and floor.


It can be used for both exterior and interior applications. ChinsunBoard can perfectly be calibrated and then laminated or coated with other materials, such as eg. wood veneer.

Applications
Size (mm) Thickness (mm) Weight (KG) Edge Profile Application
1200 x 2400
1220 x 2440
4 15.00
15.5
Square-cut edge Internal cladding
1200 x 2400
1220 x 2440
6 22.50
23.20
Square-cut edge/
Recessed edge
Internal/external ceiling

1200 x 2400

1220 x 2440
8 30.00
31.00
Square-cut edge/
Recessed edge
Internal partition

External wall cladding

Wet area and tile backing

Floor underlay
1200 x 2400
1220 x 2440
9,10

33.80

34.90

37.60

38.80

Square-cut edge External wall cladding
Wet area and tile backing
Floor underlay
1200 x 2400
1220 x 2440
12 45.00
46.4
Square-cut edge/
Recessed edge
External wall cladding

Wet area and tile backing

Floor underlay

1200 x 2400
1220 x 2440
15 56.20
58.00
Square-cut edge Internal partitions with special requirements
Elevated Floor
1200 x 2400
1220 x 2440
18

67.5

70.00

Square-cut edge Internal partitions with special requirements
Elevated Floor
1200 x 2400
1220 x 2440
20

75.20

77.60

Square-cut edge Internal partitions with special requirements
Elevated Floor

Installation

Tools:

No special tools are required. The products can be used with normal nails, fastened by normal or self-drilling screws and cut by an electric power saw with a diamond blade.


Fixing:

Chinsun calcium silicate board can be fixed to both timber (minimum size 1.5 x 3 inches) or steel frames (at least 0.55 mm thickness). The board must be supported at the edge at intermediate positions with centers not exceeding 600 mm. Screws must be located more than 12 mm from edges and 50 mm from board corners.


Fastener:

Fasteners can be both nails and screws. It can be nailed directly to timber supports with round wire nails. For metal screws, the size and length of the screw depends on the thickness of the board and the gauge of framing. Pre-drilling the board is a must unless self-embedding, self-drilling head screws.


Jointing:

Since Calcium Silicate Board is subject to slight dimensional changes, a butt joint can be used in dry partitioning areas or where an exposed joint appearance is acceptable. For better water protection, either flexible acrylic or polyurethane based sealant can be used to seal gaps of 3-5mm.


Flush Joint for ChinsunBoard, Recessed Edge


ChinsunBoard flush joint

First coat: Fill the recessed area to the face of the sheet by using a jointing compound then embed the fibreglass mesh tape into the joint.


Second coat: Apply second coat at 200 mm width. Allow it to dry thoroughly before applying a finishing coat.


 Finishing coat: Apply third coat at 300 mm width. Allow it to dry completely before sanding.

Recommended Frame Specification – For Internal Partition

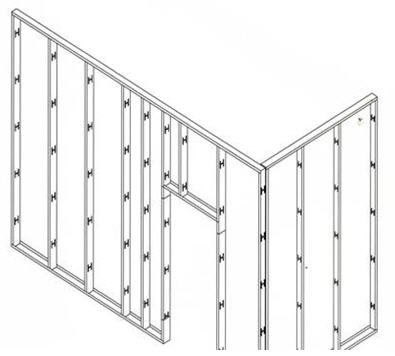

Galvanized steel frame No.24 (0.55 BMT) is recommended to be used as stud for internal partition using ChinsunBoard. Stud shall be fixed at the spacing of 600 x 2.400 mm. Details of ideal stud size are shown as follows.


Chisnun boards can be attached to steel frames


Recessed Edge


Square Edge


C 0.55 x 50 x 38 x 3000 mm


U 0.55 x 52 x 38 x 3000 mm

Technical Data

Physical Properties
Thickness Tolerance + 3%
Density 1200-1300kg/m3
Modulus of Rupture > 7 MPa (Wet)
Modulus of Elasticity 5500 + 50 MPa (Wet)
Water Absorption < 40%
Moisture Content < 12%
Water Tightness Pass
PH Value 7-8
Thermal Conductivity 0.15 W/m.K
Acoustic Insulation STC = 30 dB (6 mm single board)
STC = 50 - 60 dB (10 mm composite wall)
Moisture Movement

+ 0.4%

Fire Resistance Properties
Ignitibility Pass
Fire Propagaton Index I = 0.1
Surface Spread of Flame Class 1
Reaction to Fire Classification A1
Durability Properties
Freeze / Thaw Resistance Pass
Warm Water Resistance Pass
Heat / Rain Resistance Pass
Soak / Dry Resistance Pass


Transportation, Handing and Storage:

Deliver ChinsunBoard to the project site in the original, unopened package and store them in fully enclosed space where they will be protected against damage from humidity, direct sunlight, surface contamination and other causes of damage. Handle ChinsunBoard carefully to avoid chipping the edges or damaging units in any way. Handling and storage practices should follow the manufacturer’s recommended suggestions at all times.


Stack boards on a pallet.

Cover with a tarpaulin or other waterproof sheeting.

Carry the boards as shown in order to avoid damage/breakage or injury.
