Non-Asbestos FiberCement Siding For Exterior  Facade


Chinsun Fiber Cement Siding is strong and flexible board composed of cement,refined ores,reinforced cellulose fiber as the main materials.It's made of autoclaved process under high temperature and pressure which generates a light-weight,durable and smooth-faced board for various applications of interior and exterior decoration.

It's 100% Non-asbestos and environmental friendly building product.The board is water-proofing and incombustible which makes it more popular in the modern building industry.

Specication and Product Date

Raw Materials Cellulose Fiber, Quartz Sand, Portland Cement
Standard Size 1220X2440MM / 1200X2400MM
Maxium Width 1250MM
Maximum Length 3660MM
Thickness 3.5-25MM;
Density 3 Series: 1.3-1.4G/CM3; 1.4-1.6G/CM3;  1.6-1.7G/CM3
Wet Expansion ≤0.23%
Water Absorption ≤26%
Incombustibility Incombustible Class A1
Water Penetration Back side without water drop after 24 hours
Flexural Strength Air dried condition: ≥12; Saturated Condition: ≥8
Radioactivity Decorative materials Class A
Asbestos 100% free of asbestos
Certification ISO, CE, SGS
Packaging Standard wooden pallet
Trade Terms FOB, CNF, CIF
Payment Terms T/T, Irrevocable L/C at sight
Delivery Time Within 15 days after order confirmed
Main Characteristic Environmental friendly materials
Excellent Strength and toughness
Waterproofing and fireproofing
Antisepsis and moth-proofing
Good acoustic insulation and weather resistance
Good thermal and heat insulation
Durability and long lifetime

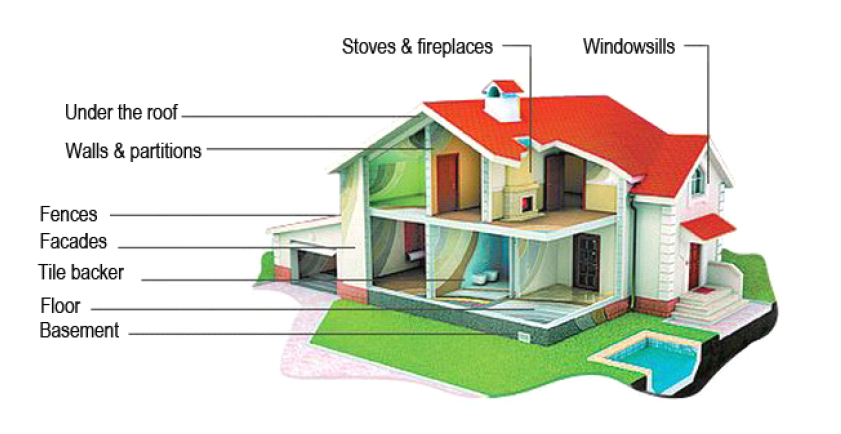

Application Cavity wall for interior partition
High sound insulation requirement wall panel

fireproof wall panel

partation wall panel
Light concrete grouting wall
Ceiling board
Perforated Board
Aluminium lining board and insulation barriers for high-speed train
Column coverage

Lining panel

Exterior siding/cladding panel
Exterior wall thermal insulation decoration panel
Interior/Exterior wall decoration panel
Flooring; Loft interlayer,Container house, light steel villa
Subay, tunnel baseboard, outdoor furniture board
Thinner lining board for stone

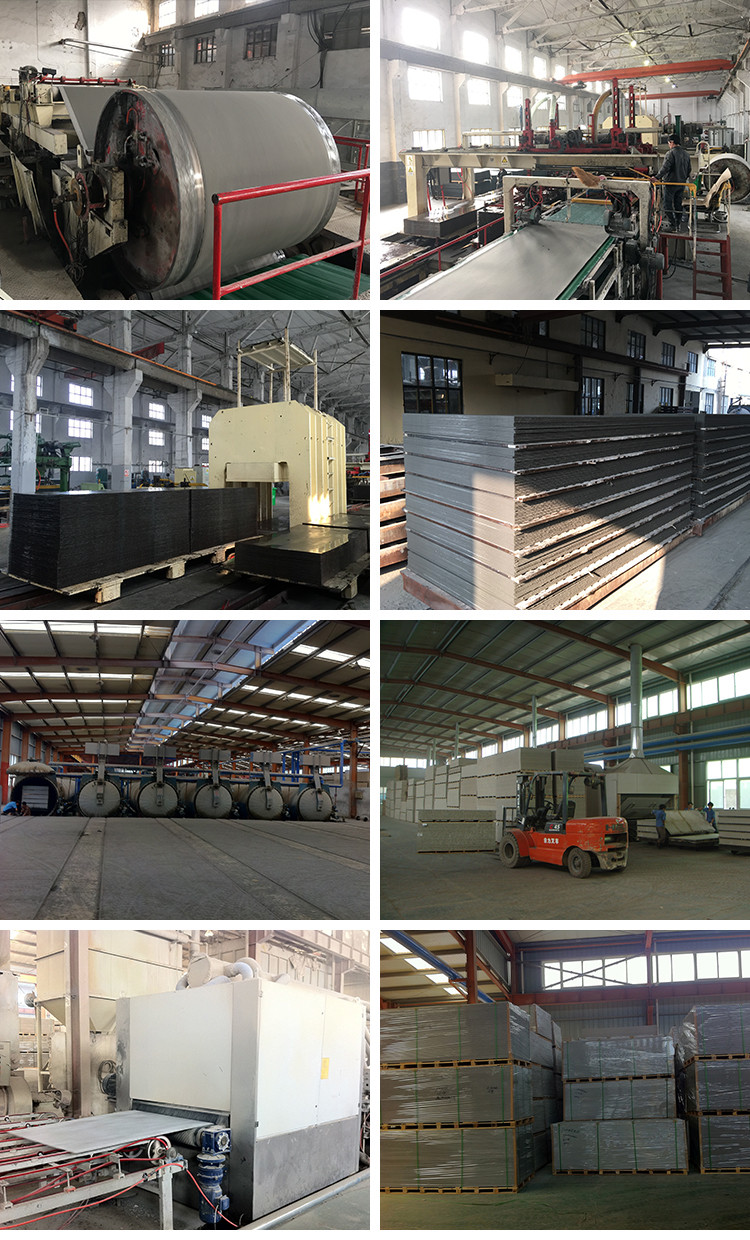

Production

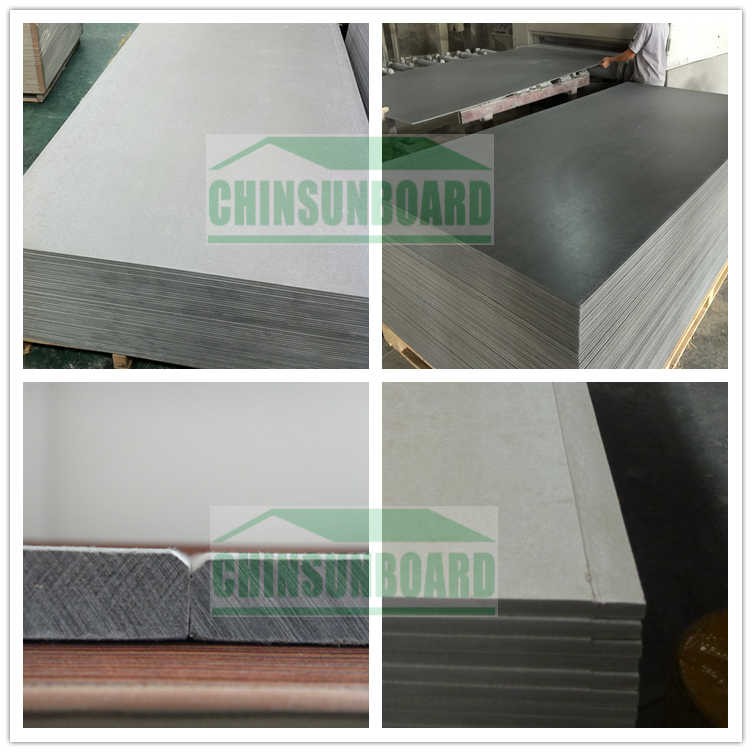

 Fiber Cement Board Surface and Edge

Surface :Polished surface OR Sanded surface as your requirement

Edge:Squared edge/Tapered edge/Bevelled edge

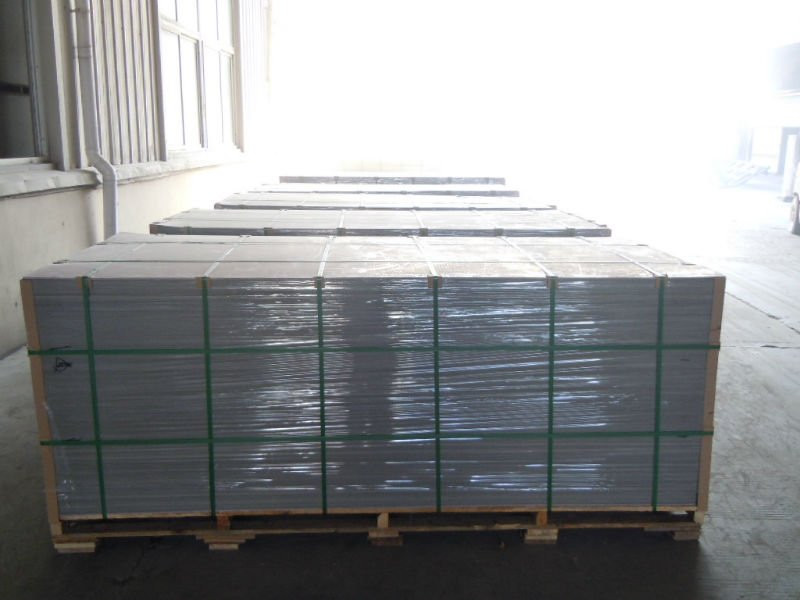

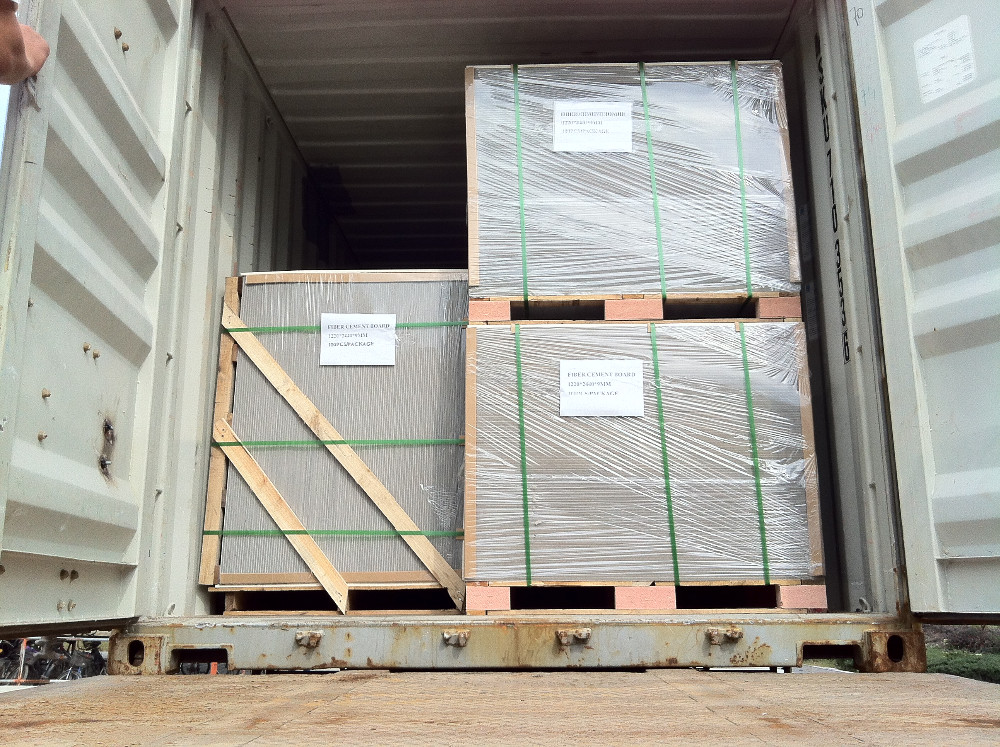

Fiber Cement Board Packing Information

Loading Quantity For Middle Density Board

Size(mm) Thickness(mm) Weight(kg)
Loading quantity
PCS/20CTN
1200*2400
1220*2440
5 20 1080
6 24 900
8 32 690
9 36 600
10 40 540
12 48 450
15 60 360
18 72 300
20 80 270



Loading Quantity For High Density Board

Size(mm) Thickness(mm) Weight(kg)
Loading quantity
PCS/20CTN
1200*2400
1220*2440
5 24 930
6 29 780
8 38.5 588
9 43 516
10 48 468
12 58 390
15 72 312
18 86.5 260
20 96
234
