Chinsunboard –  High Quality Standard Magnesium Oxide Board with amazing fire resistant properties and easy installation


Chinsun Magnesium Oxide Board is a kind of new green and fireproof building material that is used in place of traditional gypsum drywall as partition wall and ceiling covering material and sheathing. It could be used anywhere Gypsum boards or dry walls could be used, such as wall board, backer board, underlayment, siding etc.



- Weather resistant

- Immune to water damage
- Fire resistant
- Provides sound insulation
- Shatter resistant
- Low shrinkage
- Flexible
- High degree of workability
- Termite resistant







Why choose Chinsun magnesium oxide board?



1.Fireproof capability:the fireproof capability can be reached 2-3 hours, and it’s no combustion at 800ºC and no flame out at 1200ºC.



2.Sound and heat insulation:the Sound insulation will be more than 45db (depend on the structure), and it has a great performance on heat insulation



3.Shockproof:Fiberglass mesh inside the boards is designed to absorb shocks. It results in a shockproof and bend-proof board to increase durability.



4.Health concerns:MgO boards are Asbestos free,non toxicity and formaldehyde free.


5.Other advantagesLighter,more flexible and stable than tradition sheeting systems;Time and material saving-dramatically reducitng construction costs;Environmentally friendly.



Applications

Size (mm) Thickness (mm) Weight (KG) Edge Profile Application
1200 x 2400
1220 x 2440
3
18.00
18.61
Square-cut edge Internal cladding
1200 x 2400
1220 x 2440
6
27.00
27.91
Square-cut edge/
Recessed edge
Internal/external ceiling

1200 x 2400

1220 x 2440
8
36.00
37.21
Square-cut edge/
Recessed edge
Internal partition

External wall cladding

Wet area and tile backing

Floor underlay
1200 x 2400
1220 x 2440
9,10
40.50
41.86
45.00
46.51
Square-cut edge
External wall cladding
Wet area and tile backing
Floor underlay
1200 x 2400
1220 x 2440
12
54.00
55.82
Square-cut edge/
Recessed edge
External wall cladding

Wet area and tile backing

Floor underlay

1200 x 2400
1220 x 2440
15
66.27
68.50
Square-cut edge
Internal partitions with special requirements
Elevated Floor
1200 x 2400
1220 x 2440
18
79.52
82.20
Square-cut edge
Internal partitions with special requirements
Elevated Floor
1200 x 2400
1220 x 2440
20
88.36
91.33
Square-cut edge
Internal partitions with special requirements
Elevated Floor

Installation

Tools:

No special tools are required. The products can be used with normal nails, fastened by normal or self-drilling screws and cut by an electric power saw with a diamond blade.


Fixing:

Chinsun magnesium oxide board can be fixed to both timber (minimum size 1.5 x 3 inches) or steel frames (at least 0.55 mm thickness). The board must be supported at the edge at intermediate positions with centers not exceeding 600 mm. Screws must be located more than 12 mm from edges and 50 mm from board corners.


Fastener:

Fasteners can be both nails and screws. It can be nailed directly to timber supports with round wire nails. For metal screws, the size and length of the screw depends on the thickness of the board and the gauge of framing. Pre-drilling the board is a must unless self-embedding, self-drilling head screws.


Jointing:

Since magnesium oxide board is subject to slight dimensional changes, a butt joint can be used in dry partitioning areas or where an exposed joint appearance is acceptable. For better water protection, either flexible acrylic or polyurethane based sealant can be used to seal gaps of 3-5mm.


Flush Joint for ChinsunBoard, Recessed Edge


ChinsunBoard flush joint

First coat: Fill the recessed area to the face of the sheet by using a jointing compound then embed the fibreglass mesh tape into the joint.


Second coat: Apply second coat at 200 mm width. Allow it to dry thoroughly before applying a finishing coat.


 Finishing coat: Apply third coat at 300 mm width. Allow it to dry completely before sanding.

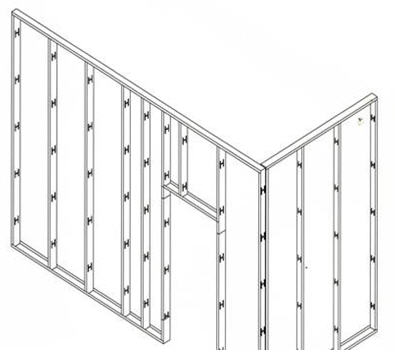

Recommended Frame Specification – For Internal Partition

Galvanized steel frame No.24 (0.55 BMT) is recommended to be used as stud for internal partition using ChinsunBoard. Stud shall be fixed at the spacing of 600 x 2.400 mm. Details of ideal stud size are shown as follows.


Chisnun boards can be attached to steel frames


Recessed Edge


Square Edge


C 0.55 x 50 x 38 x 3000 mm


U 0.55 x 52 x 38 x 3000 mm

Technical Data

Physical Properties
Thickness Tolerance + 3%
Density 900-1000kg/m3
Modulus of Rupture > 8 MPa (Wet)
Modulus of Elasticity 4500 + 50 MPa (Wet)
Water Absorption < 40%
Moisture Content < 15%
Water Tightness Pass
PH Value 7-8
Thermal Conductivity 0.15 W/m.K
Acoustic Insulation STC = 30 dB (6 mm single board)
STC = 50 - 60 dB (10 mm composite wall)
Moisture Movement

+ 0.4%

Fire Resistance Properties
Ignitibility Pass
Fire Propagaton Index I = 0.1
Surface Spread of Flame Class 1
Reaction to Fire Classification A1



Transportation, Handing and Storage:

Deliver Chinsun magnesium oxide board to the project site in the original, unopened package and store them in fully enclosed space where they will be protected against damage from humidity, direct sunlight, surface contamination and other causes of damage. Handle ChinsunBoard carefully to avoid chipping the edges or damaging units in any way. Handling and storage practices should follow the manufacturer's recommended suggestions at all times.





Stack boards on a pallet.

Cover with a tarpaulin or other waterproof sheeting.

Carry the boards as shown in order to avoid damage/breakage or injury.
